Precision pneumatic spot welding head ah-03s

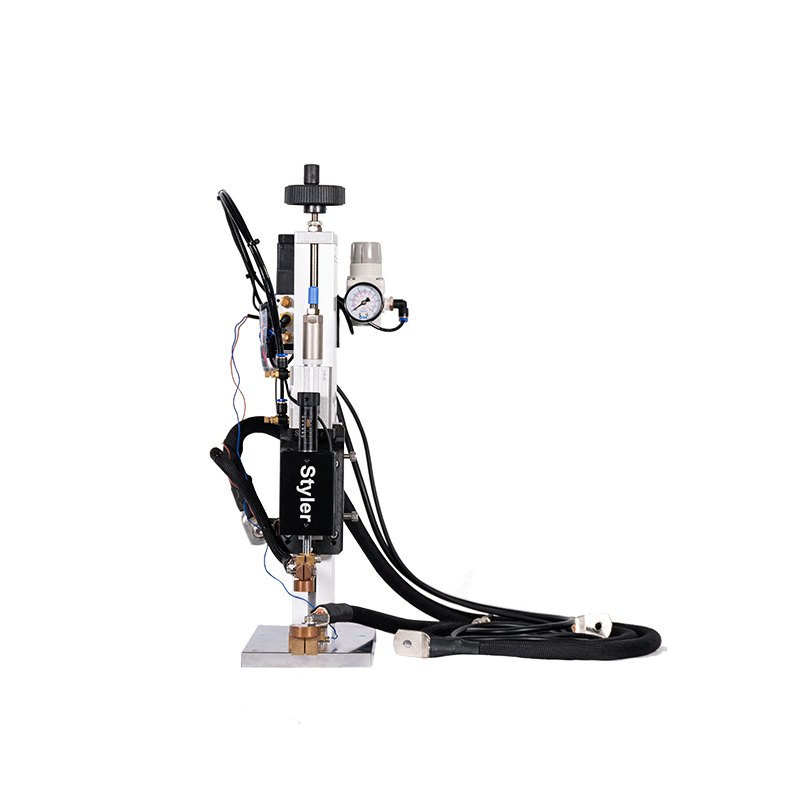

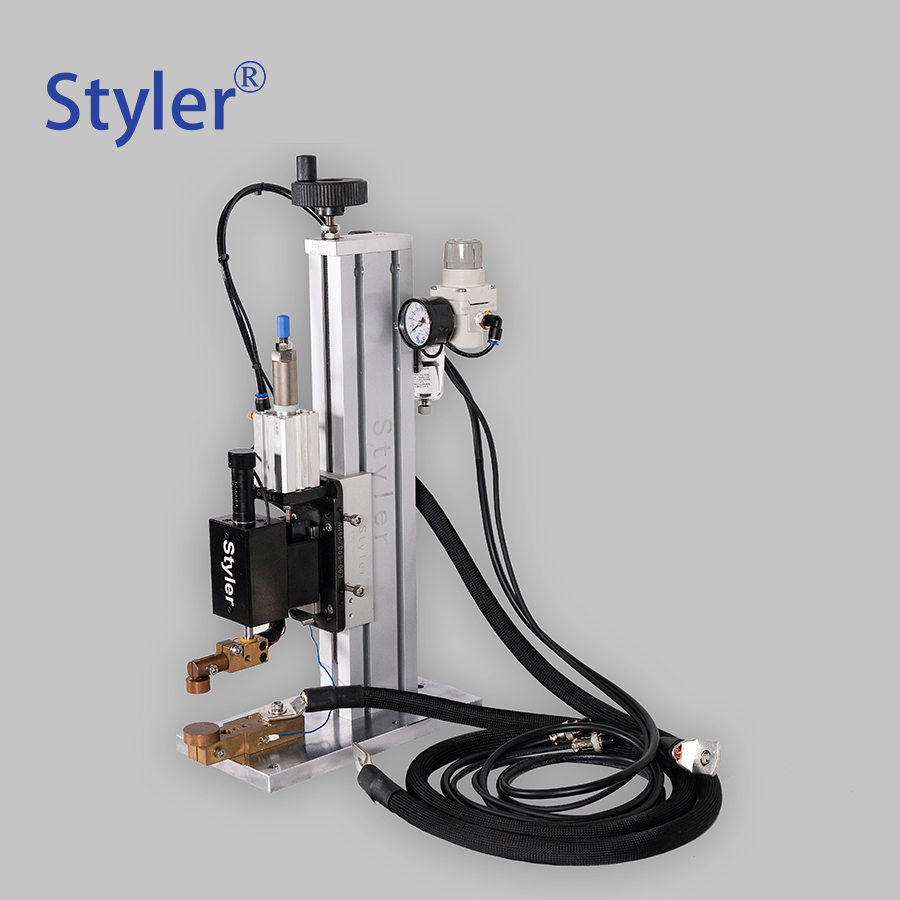

  • Precision pneumatic spot welding head ah-03s

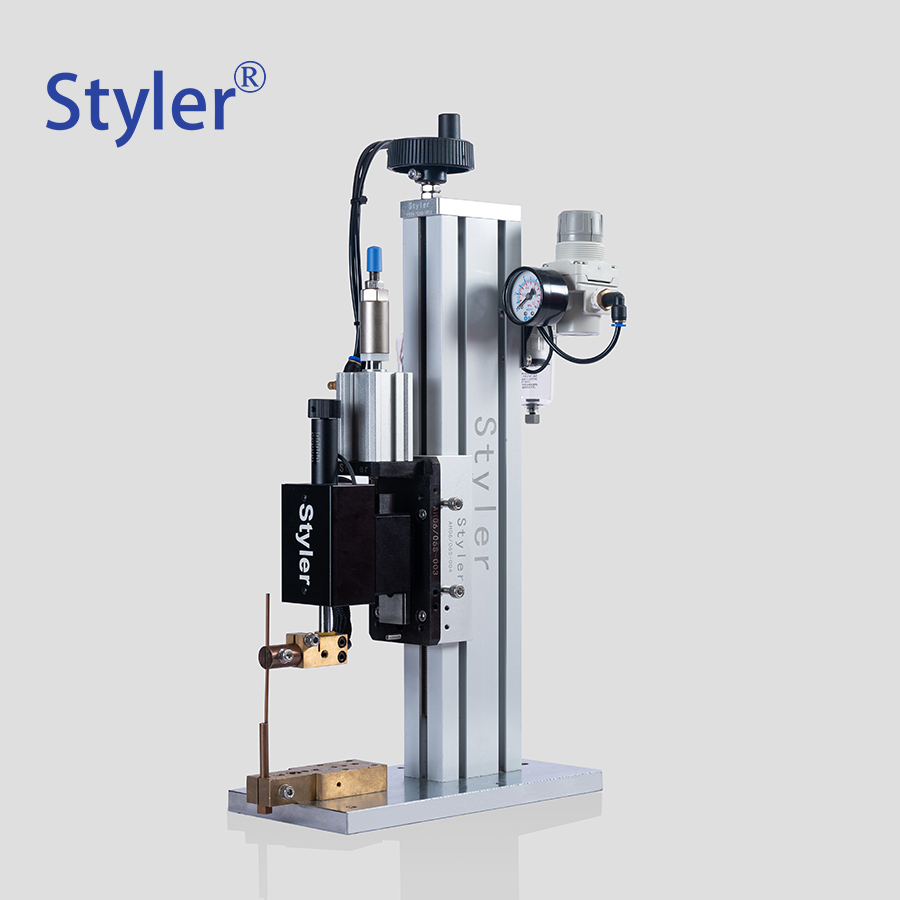

  • Precision pneumatic spot welding head ah-03s
  • Precision pneumatic spot welding head ah-03s
  • Precision pneumatic spot welding head ah-03s
  • Precision pneumatic spot welding head ah-03s
  • Precision pneumatic spot welding head ah-03s
Precision pneumatic spot welding head ah-03s

Attributes:
Classification:Resistance welding equipment and Application
Number:
Views:5656
Date:2021-11-11

Hotline:13580722659

  • Overview
  • Characteristics
  • Parameter
  • Video

Equipment characteristics

◎ precision pneumatic spot welding machine head has good rigidity, small distortion and deformation during operation and good stability;

◎ precision pneumatic spot welding head has good pressure following performance, which is suitable for welding thick pole pieces or workpieces;

◎ the built-in pressure switch is connected with the welding controller to ensure welding under the same pressure;

◎ the welding head speed can be fine tuned, and the cylinder stroke can be adjusted (optional).

◎ the double needle pressure is independently adjustable, which can be used for welding under different pressure according to the requirements. The welding speed is fast and the effect is good.


Precision welding head design The strengthened column and bedplate ensure the rigidity and stability of the welding head. The lower inertia ensures the flexibility of the welding head, thus ensuring the rapid follow-up of the pressure during welding, making the welding more firm and the solder joint more beautiful. The pressure sensing control system inside the head can detect whether the welding needle compresses the workpiece at any time, and discharge welding under the set pressure, which ensures the reliability of welding, significantly speeds up the welding speed and improves the production efficiency. The pressure between the electrode and the weldment can be adjusted through the pressure adjusting handle, and different welding pressures can be adjusted for different welding pads. The head action speed regulating valve on the side of the head makes the electrode move smoothly, reduces the stamping of the butt welding surface, reduces the indentation and less spatter, so as to make the welding more firm and the welding joint more beautiful.
Unique structure Three dimensional electrode adjustment makes the adjustment of welding needle more convenient; Stepless lifting of worktable and hand screw locking make it more convenient to adjust the position of workpiece. Pneumatic operation, equipped with quick connectors, is convenient to change the operation position, more suitable for the frequency and density adjustment of the production line, and more convenient for the installation, commissioning and maintenance of the machine.
Model AH-03S
Electrode stroke (mm) twenty-five
Pressurization range (n) 20-200
Pressure mode of welding needle Spring
Distance from electrode to body (mm) one hundred and ninety-five
Working space height (mm) 0~190
Electrode diameter (mm) 3.0/6.0/8.0
Welding arm structure Telescopic swing control
Overall dimension (mm) 318X160X420
Total weight (kg) eleven
